DT-9800T Industrial True RMS 600 Amp AC/DC Current Voltage Capacitance Resistance Temperature Clamp-on Meter

Sku: DT9800T-001

Retail Price: $169.95
Sales Price: $79.95

Product Description

This is a brand new CEM DT-9800T certified digital clamp meter. This compact device features 600 Amp True RMS precision measurement. It also measures temperature, capacitance, voltage and resistance in great accuracy. This meter also checks the diode and circuit continuity.

The inputs are protected to EN 61010-1 CATIII 600V. A heavy duty carrying pouch is also included for the protection of the device and your convenience.

*** Warning: This device is to be used by a certified technician only. All safety regulation should be observed when testing high power circuits.

Features
  • True RMS AC / DC current up to 600A
  • Type K temperature measurement (K-type probe is included)
  • Resistance, voltage and capacitance measurement
  • 4-digit LCD display
  • 1.25" (33mm) Clamp jaw opening
  • Data hold function
  • DCA zero function
  • Auto power off
  • Peak hold to capture maximum reading
  • Accessories: Test leads, K-type thermo probe and Carrying pouch

Specification
Function Max Range Basic Accuracy
Current AC 600A (2.5%+5d)
Current DC 600A (2.5%+4d)
Voltage AC 600V (2.0%+4d)
Voltage DC 600V (1.5%+3d)
Resistance 40MΩ (1.5%+2d)
Capacitance 100uF (3.5%+5d)
Temperature 760 deg C/1400 deg F (3.0%+5d)
Diode Check Test current of 0.3mA,
Open circuit voltage 1.5V

Size(HxWxD): 203mm x 79mm x 41mm
Weight: 185g

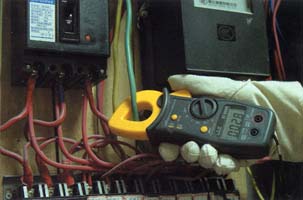

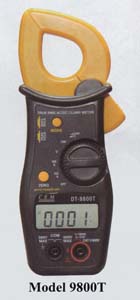

Photos

Click image to enlarge.

Policy Summary:

Product Condition New, guaranteed to work
Packaging Retail pack As shown in the photo
Manufacturer's Warranty 1 year under normal use; replace, repair or refund at seller's sole discretion.  Shipping & handling are not refundable
Seller's Warranty 30 days
Sales tax 8.75% for California residents

ALL PURCHASES ARE SUBJECT TO ADDRESS VERIFICATION.

We ship to CONFIRMED ADDRESS ONLY.

More store policies

Retail Price: $169.95
Sales Price: $79.95
