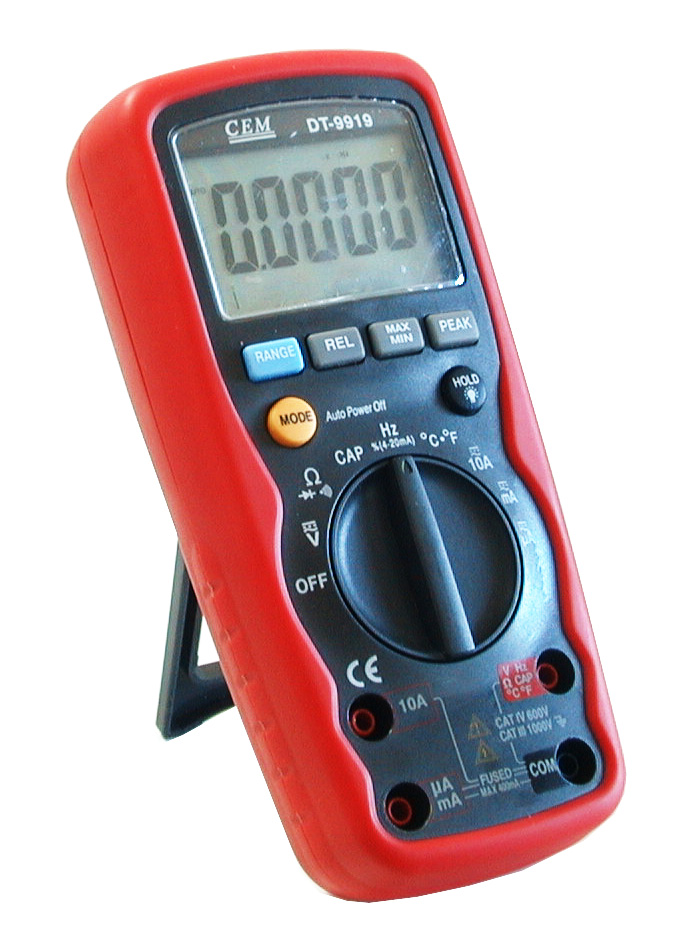

DT-9919 Industrial 5-digit True RMS Waterproof Digital Frequency Capacitance Temperature Multimeter

Sku: MDT9919-001

Retail Price: $299.95
Sales Price: $94.95

Product Description

This is a brand new CEM DT-9919 certified digital multimeter. This top-of-the-line device offers precision measurement, high resolution 5-digit accuracy, industrial strength double molded plastic housing and IP67 waterproof design. DT-9919 also offers true RMS AC/DC voltage/current, resistance, duty cycle, frequency, capacitance and temperature measurement.

The large LCD display with analog bargraph and back light ensure easy reading under all circumstances. All inputs are protected to EN 610101-1 CATIV 600V / CATIII 1000V. A heavy duty carrying pouch is also included for the protection of the device and your convenience.

Features
  • High resolution (0.01mV, 0.01 uA, 0.01 Ohm) 40,000-count display

  • Back light LCD

  • True RMS measurement
  • 1000V protection on all device inputs
  • Data Hold / Max / Min recording mode
  • Auto power off
  • Peak capture mode
  • Wide capacitance range
  • Double molded plastic housing
  • Safety compliance: EN61010-1 CAT IV 600V,CAT III 1000V
  • Heavy duty carrying case included

Specification

Function Max Range Basic Accuracy
Voltage DC 1000V + 0.06%
Voltage AC 1000V + 1.0%
Current DC 10A + 1.0%
Current AC 10A + 1.5%
Resistance 40MΩ + 0.3%
Duty Cycle 99.9% + 1.2%
Temperature 760 deg C / 1400 deg F + 1.0%
Frequency 10MHz + 0.1%
Capacitance 40mF + 3.5%
Diode Check
Continuity Test
Size (HxWxD): 182mm x 82mm x 55mm
Weight: 360g

Certified

Photos

Click image to enlarge.

Policy Summary:

Product Condition New, guaranteed to work
Packaging Retail pack As shown in the photo
Manufacturer's Warranty 1 year under normal use; replace, repair or refund at seller's sole discretion.  Shipping & handling are not refundable
Seller's Warranty 30 days
Sales tax 8.25% for California residents
